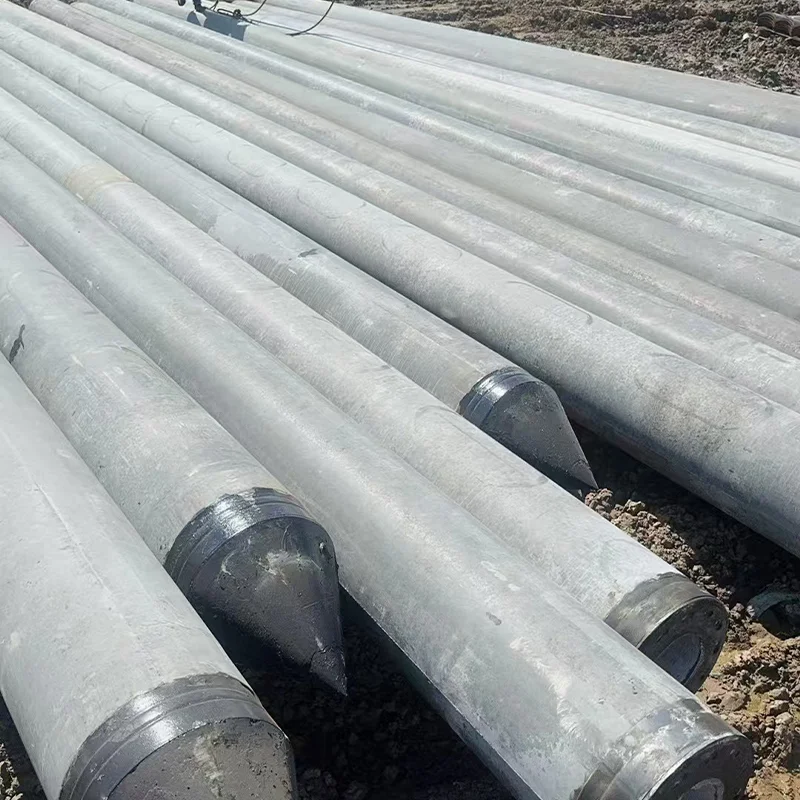

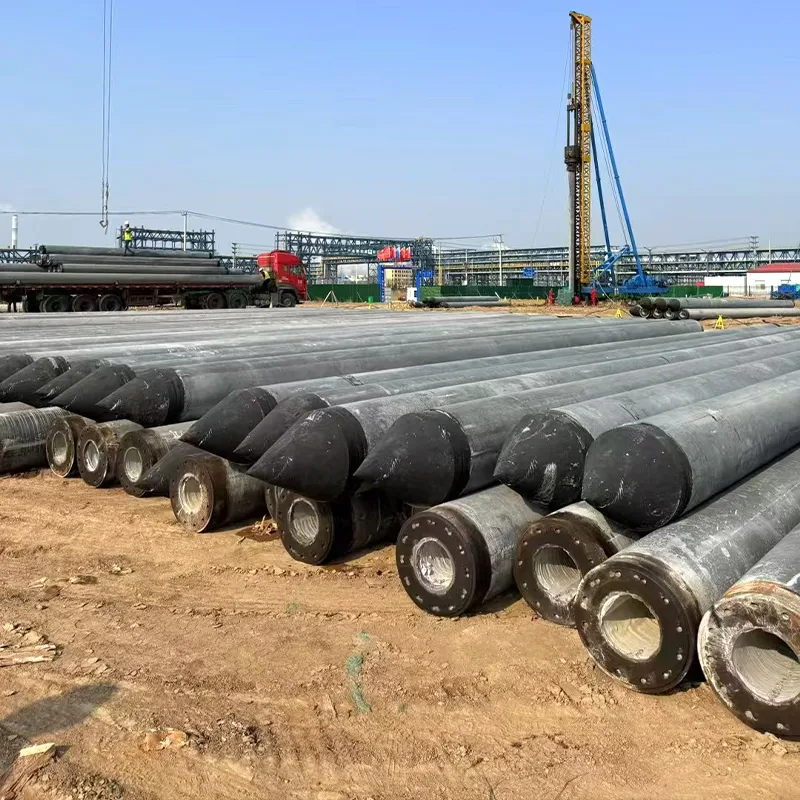

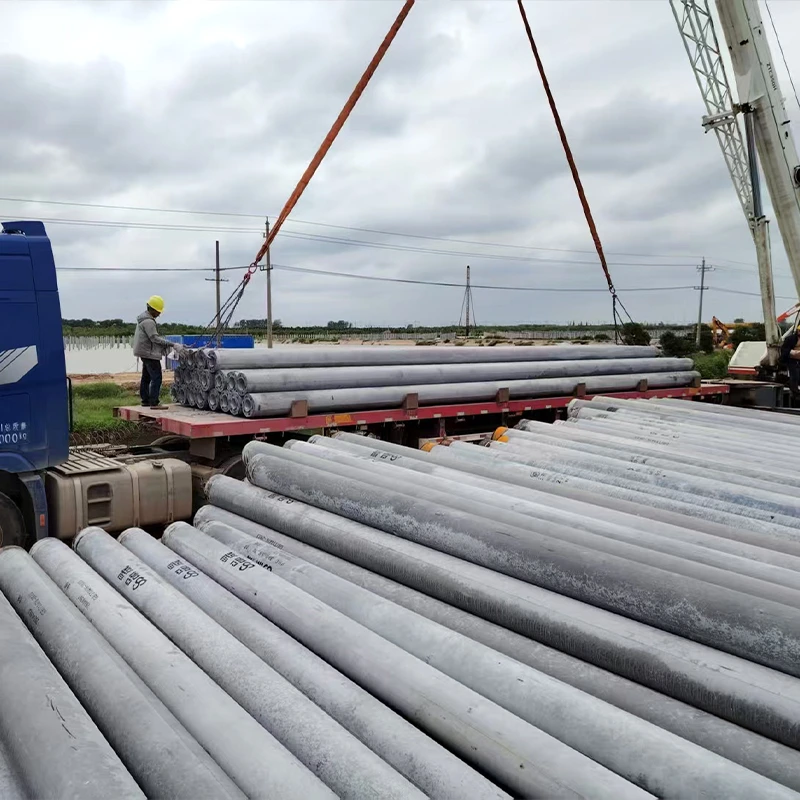

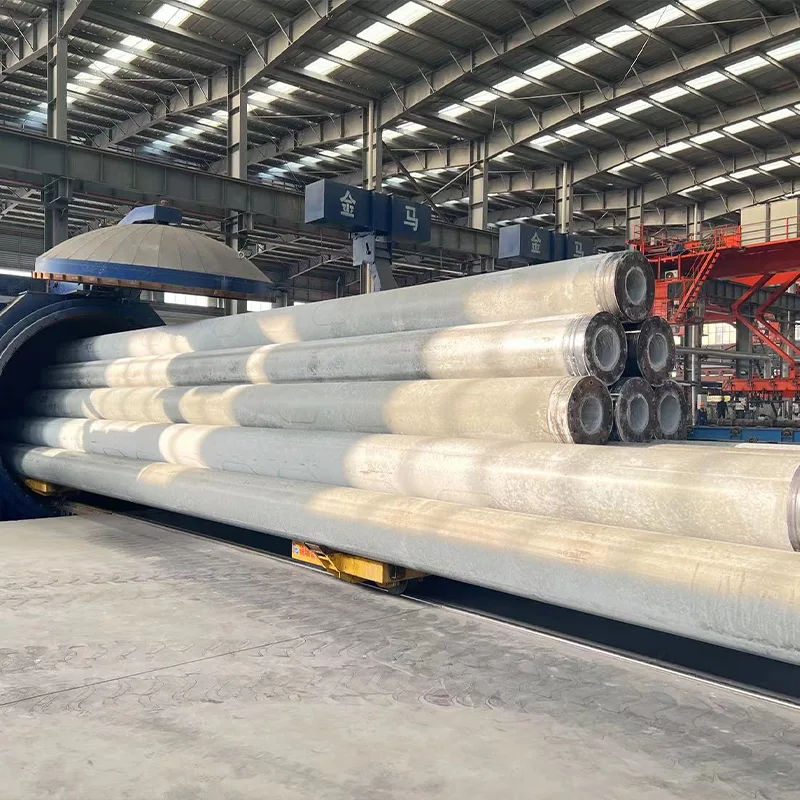

Featuring high strength, high density, low water-cement ratio, low permeability, strong impact resistance, and high structural bearing capacity, Prestressed High-Strength Concrete Pipe Piles (including PHC and PRC series) are recognized as high-performance foundation materials in the construction industry.
They are extensively utilized in a wide range of engineering fields, including industrial and civil buildings, transportation hubs such as highways, railways and bridges, coastal facilities like ports and wharfs, airport runways, water conservancy projects, municipal works, and large-scale equipment foundations.
Our company provides professional and systematic services including pre-project surveying, tailored design, construction supervision, and technical consulting, fully guaranteeing the stability and durability of your project foundations.
Feedback
| Pile diameter (mm) |
Thickness (mm) |
Type | PC steel bar | Standard bending moment | Structural Axial Compressive Capacity (KN) |
Structural Shear Capacity (KN) |
Theoretical Weight (kg/m) |
Applicable Standard | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Number & Diameter(mm) | Cracking (KN.m) |
Design (KN.m) |
Breaking (KN.m) |
|||||||
| D | T | Mcr | Md | Mu | Nrd | Vrd | W | Std. | ||
| 300 | 70 | A | 6ФD7.1 | 25 | 26 | 37 | 1271 | 204 | 132 | GB/T13476-2023 |
| AB | 6ФD9.0 | 30 | 40 | 50 | 1271 | 326 | ||||
| B | 8ФD9.0 | 34 | 51 | 62 | 1271 | 435 | ||||
| C | 8ФD10.7 | 39 | 65 | 79 | 1271 | 612 | ||||
| 500 | 120 | A | 12ФD9.0 | 122 | 137 | 167 | 3600 | 653 | 358 | |
| AB | 12ФD10.7 | 142 | 186 | 228 | 3600 | 918 | ||||
| B | 12ФD12.6 | 169 | 245 | 302 | 3600 | 1275 | ||||
| C | 15ФD12.6 | 191 | 291 | 371 | 3600 | 1594 | ||||
| 400 | 95 | A | 7ФD9.0 | 52 | 66 | 89 | 2000 | 350 | 227 | 苏G03-2012 |
| AB | 7ФD10.7 | 61 | 91 | 123 | 1900 | 500 | ||||
| B | 10ФD10.7 | 76 | 123 | 166 | 1750 | 700 | ||||
| C | 13ФD10.7 | 89 | 151 | 204 | 1650 | 900 | ||||
| 100 | A | 8ФD9.0 | 55 | 74 | 100 | 2050 | 400 | 236 | ||
| AB | 8ФD10.7 | 66 | 101 | 137 | 1950 | 550 | ||||
| B | 10ФD10.7 | 75 | 122 | 165 | 1850 | 700 | ||||
| C | 13ФD10.7 | 89 | 150 | 203 | 1700 | 900 | ||||
| 500 | 100 | A | 11ФD9.0 | 98 | 135 | 183 | 2700 | 550 | 315 | |
| AB | 11ФD10.7 | 118 | 184 | 249 | 2550 | 800 | ||||
| B | 11ФD12.6 | 145 | 242 | 326 | 2350 | 1100 | ||||
| C | 13ФD12.6 | 162 | 274 | 370 | 2250 | 1250 | ||||
| 110 | A | 11ФD9.0 | 98 | 133 | 180 | 2950 | 600 | 337 | ||
| AB | 11ФD10.7 | 118 | 182 | 246 | 2800 | 800 | ||||
| B | 11ФD12.6 | 144 | 240 | 325 | 2600 | 1100 | ||||
| C | 13ФD12.6 | 160 | 274 | 370 | 2500 | 1250 | ||||
| 125 | A | 12ФD9.0 | 103 | 140 | 189 | 3250 | 650 | 369 | ||
| AB | 12ФD10.7 | 123 | 192 | 259 | 3050 | 850 | ||||
| B | 12ФD12.6 | 150 | 254 | 343 | 2850 | 1200 | ||||
| C | 15ФD12.6 | 174 | 301 | 407 | 2650 | 1450 | ||||
| 600 | 110 | A | 14ФD9.0 | 155 | 213 | 287 | 3700 | 750 | 424 | |
| AB | 14ФD10.7 | 187 | 290 | 392 | 3500 | 1000 | ||||
| B | 14ФD12.6 | 229 | 383 | 517 | 3250 | 1350 | ||||
| C | 17ФD12.6 | 261 | 444 | 599 | 3050 | 1650 | ||||
| 130 | A | 16ФD9.0 | 167 | 234 | 316 | 4200 | 850 | 480 | ||
| AB | 16ФD10.7 | 202 | 319 | 431 | 4000 | 1150 | ||||
| B | 16ФD12.6 | 248 | 422 | 570 | 3700 | 1550 | ||||
| C | 20ФD12.6 | 288 | 500 | 675 | 3450 | 1900 | ||||
| 800 | 110 | A | 15ФD10.7 | 317 | 448 | 605 | 5200 | 1100 | 597 | |
| AB | 15ФD12.6 | 384 | 603 | 813 | 4900 | 1500 | ||||
| B | 22ФD12.6 | 493 | 824 | 1113 | 4450 | 2150 | ||||
| C | 30ФD12.6 | 613 | 1019 | 1376 | 3950 | 2800 | ||||
| 130 | A | 16ФD10.7 | 335 | 467 | 631 | 6000 | 1150 | 685 | ||
| AB | 16ФD12.6 | 404 | 631 | 852 | 5700 | 1600 | ||||
| B | 24ФD12.6 | 523 | 886 | 1196 | 5200 | 2350 | ||||
| C | 32ФD12.6 | 639 | 1088 | 1469 | 4700 | 3000 | ||||
